Metal Fiber Optic Adapter , SMA Fiber Optic Connector Multimode Simplex
Quick informations:
- Adapter type: SMA
- Channel way: 1 way (simplex), 2 ways (duplex)
- Fiber mode: single mode, multimode
- Color: metail color
Descriptions:
- SMA fiber optic adapter (also call SMA optic fiber adapter) is available in single mode UPC and multimode SPC to sastify to connect single mode or multimode patch cable.
- SMA adapter color is metal color.
- Fiber optic adapters also call fiber optical adapter, optic fiber adapter, optical fiber adapter.
- The fiber optic adapters use to join two fiber optic patch cables together. It contains the interconnect sleeve, that holds the two ferrules together.
Applications:
- Testing instruments
- Connection between devices
- Connection between fiber optic patch cords
- CATV, MANS, WANS
- FTTX, FTTH
Advantage of the fiber optic adapters:
- Our range of fiber optic cable adapter can consistent good quality as is proven by repeated tests. It is interchangeable with similar devices built to the same standards.
- We provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability.
- These products are designed and manufactured to comply with stringent Telcordia 100BaseFX Technologies standards.
- Low Insertion Loss means there is little reduction in light intensity along the transmission router.
- High Reliability
- Also compliant with the IEC and ROSH standards

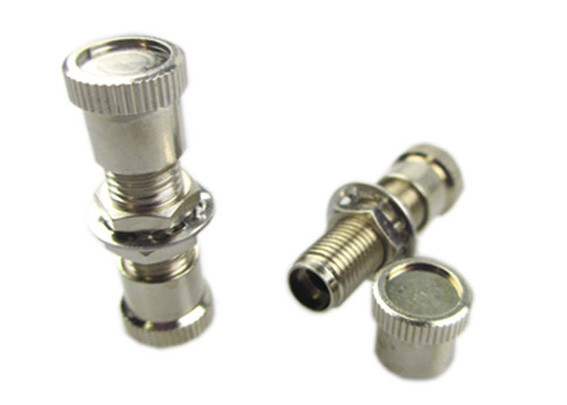

Product pictures:
Specification of fiber optic adapters:
| Parameter | Specifications |
| Mating Connector Type | SC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc |
| Fiber Type of Connector | Single Mode | Multimode |
| Adapter Color | Blue, green, metallic | Beige, Metallic |
| Testing Wavelength | 1310nm,1550nm | 850nm,1300nm |
| Insert Loss | Typical≤0.15dB, max≤0.2dB | Typical≤0.15dB, max≤0.2dB |
| Repeatability | ≤0.10dB |
| Exchangeability | ≤0.20dB |
| Durability | 1000Mating, max≤0.20dB |
| Housing Material | Plastic or metal |
| Operating Temperature | -20°C～+70°C |
| Storage Temperature | -40°C～+85°C |
| Alignment Sleeve | Ceramic (ZrO2) or customized |
| Channel Number | Simplex, duplex, quad . |
Reliability testing:
| Item | Test Name | Additional Insertion Loss | Additional Return Loss |
| 1 | Mechanical durability | <0.2dB | <5dB |
| 2 | Repeatability | <0.2dB | <5dB |
| 3 | Lock strength | <0.2dB | <5dB |
| 4 | Low strength | <0.2dB | <5dB |
| 5 | High temperature | <0.2dB | <5dB |
| 6 | Steaming | <0.2dB | <5dB |
| 7 | Temperature cycle | <0.2dB | <5dB |
| 8 | Vibration | <0.2dB | <5dB |
| 9 | Drop | <0.2dB | <5dB |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
