OEM ODM Optical Fiber Distribution Frame ODF Rack 19 inch 720cores 2m 2.2m
Product introduction:
- Fiber Optic Cabinet is special design for indoor data center. It is fit with 19 inch size.
- Cabinet high can do: 2m and 2.2m as customer request.
- New design directly use the tray, to save more cost and space, also can expand more capacity.
- Easy to use and operate.
- It is suitable for branching single fiber cable into multi fiber cable.
Applications:
- FTTx (FTTA, FTTB, FTTH, FTTO, ...),
- LAN,
- WAN,
- Data center,
- CATV,
- Telecommunications subscriber loop
Features:
- Cable can lead in from the bottom of the box, the entry is under the protection of special rubber parts.
- It is composed of case body, fiber optical splice tray and adaptor fixing frame.
- Combine fusion and connection, surplus fiber holding, and patch cord holding in integration
- Surplus fibers can be twisted around two special plastic rings, which ensure the bending radius is bigger than 40mm.
- Adapter panel to fix adaptors which available for different types of adaptors, easy for operation and avoid any unexpected damage to fiber.
- It is devised into two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.
Quick Information:
| Part number | KCO-ODF-2000 |
| Name | 19 inch indoor fiber optic distribution frame |
| Capacity | Max 720 cores |
| Material | Steel, 1.2mm |
| Cable | Outdoor cable, indoor cable, ftth cable |
| Cable diameter | Max. 22.0mm |
| Adapter | SC, LC, FC, ST, E2000, etc |
| Size | 2000x800x400mm |
Dimension:
| P/N | Dimensions (H * W * D) | Capacity |
| KCO-ODF-2000-720SC | 2000x800x400mm | 720 FO |
| KCO-OC2000-576SC | 2000x800x400mm | 576 FO |
| KCO-ODF-2000-1440SC | 2000x1200x400mm | 1440 FO |

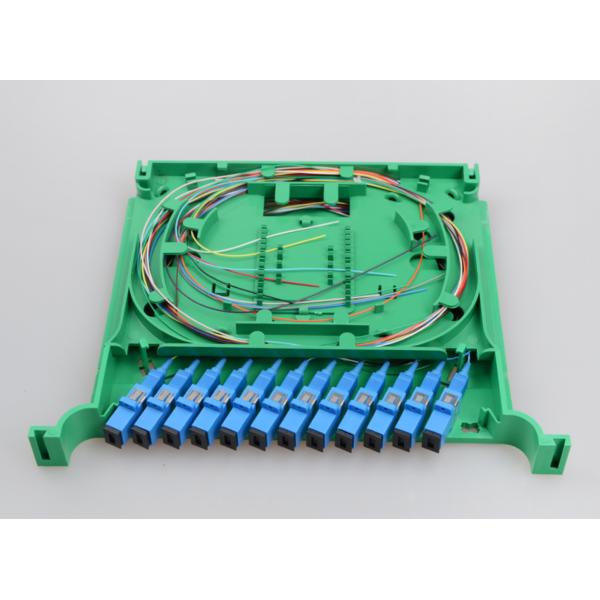

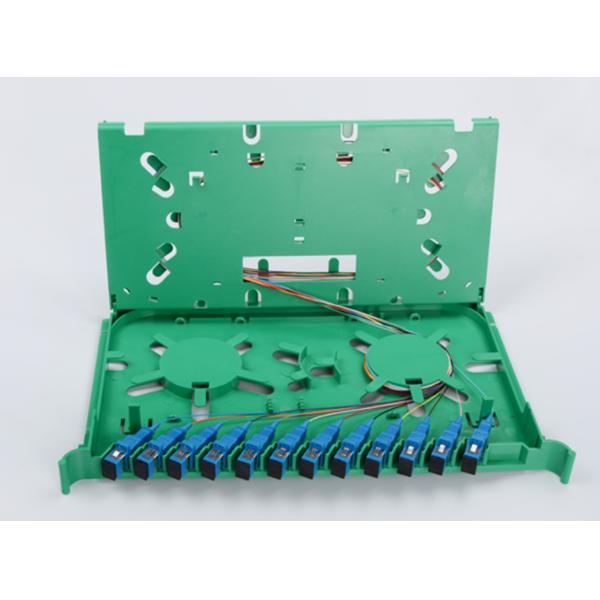

Product picutures:

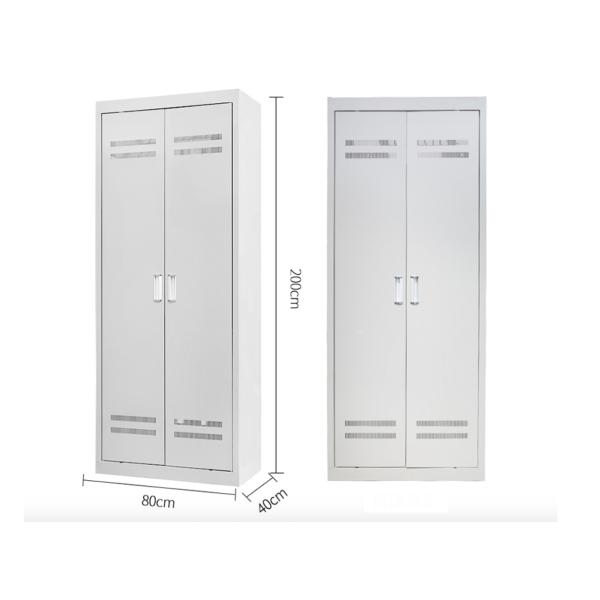

Size:
Operating Conditions:
- Temperature -45~+85
- Relative humidity ≤85%(+30 C)
- Atmospheric pressure 70KPa~106KPa
Qualification:
- Nominal work wave-length: 850nm,1310nm,1550nm
- Connectors loss: ≤0.2dB
- Insert loss: ≤0.2dB
- Return loss: >=50dB(UPC),>=60dB(APC)
- Insulation resistance (between frame and protection grounding): >1000MΩ/500V(DC)
OEM/ODM Service:
- Logo printing on label: free.
- Logo printing on packing carton box: contact with our sales team to get more information.
- Logo lettering on goods: conntact with our sales team to get more information.
- OEM service: yes.
- ODM service: yes.
Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden/plastic pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export air port: Shenzhen, Guangzhou, Hongkong, Beijing, Shanghai, Hangzhou.
