1x6 PLC Fiber Optic Splitter Mini Blockless Tube Type SC UPC Connector

Brand Name : KCO, Kocent Optec Limited

Model Number : KCO-Mini-1*6-SCUPC

Certification : ISO9001, RoHS

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : Western Union, T/T, L/C, Paypal

Supply Ability : 20,000 set/ month

Delivery Time : 2~5 days

Packaging Details : Carton box, wooden pallet

Package type : Mini Tube Type

Length : 1.0m, 1.5m

Splitter type : 1x6 with Connector or 1*6 without connector

Connector : SC/APC, SC/UPC， LC & FC,

Cable : 0.9mm 1.0M

P/N : KCO-Mini-1*6-SCU orSCA

MOQ : 1pc

Contact Now

Mini Tube Type Fiber Optic 1x6 PLC Splitter with SC/UPC or SC/APC Connector

1x6 SC/UPC Mini PLC Splitter Descriptions:
- The blockless splitter features small size, which is an intermediate choice between volume miniaturization and reliable fiber protection. It is suitable for installation in your system design and manufacturing.

- Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

- Fiber Optic PLC splitters are characterized as uniform broadband power splitters featuring exceptional uniformity of insertion loss throughout all channels resulting in fact in practical wavelength independency over all transmission range from 1260 to 1650 nm. Total value of insertion loss itself typically exceeds theoretical values just by minimum - ranging from 0.5 dB (for 1x2 splitter) to 2.5 dB (for 1x128 splitter).

- For different applications, PLC splitters can be further categorized into different types including bare PLC splitters, blockless PLC splitters, ABS PLC splitters, LGX box PLC splitters, mini plug-in type PLC splitters, tray type PLC splitters and 1U rack mount PLC splitters.

- 1x6 PLC Splitter features guaranteed performance specifications and high reliability that surpass Telcordia requirements and is tailored for different applications and markets.

Features:
  1. High reliability and high return loss
  2. Excellent environmental stability
  3. Low Insertion loss and Low PDL
  4. Uniform power splitting
  5. Compact size and various package
Applications:
- DWDM Networks
- Long-Haul Tele/Data Communications
- Local Area Network, GPON/Gpon, and FTTH etc
- Fiber Sensors and fiber splitter boxes
- Fiber Optic Equipment and Systems
- CATV Systems and equipment

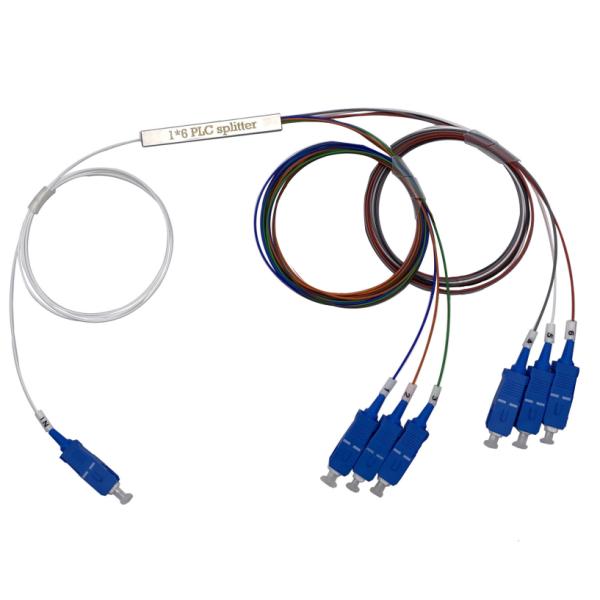

Product photos:

1x6 PLC Fiber Optic Splitter Mini Blockless Tube Type SC UPC Connector

Technology Datasheet:

Parameters Specifications Company Notes
port configuration 1×6 (steel)

RoHS
Working wavelength 1260-1650 nm
Insertion loss (IL) ≤9.5 dB
Consistency (UF) ≤0.8 dB
Polarization dependent loss (PDL) ≤0.2 dB
Return loss (RL) ≥55 dB
directional ≥55 dB
Fiber type G.657.A1
Pigtail type Input end: 0.9mm loose tube
Output end: 0.9mm loose tube
Fiber length Input 1M± 0.03 m
Output 1M ± 0.03
Connector type SC/APC
Casing identification Input: in1 SC/APC
Output terminal: 01 ~ 06 SC/APC
Package size 4*7*60 mm
working temperature -40 ~ +85 ℃
Storage temperature -40 ~ +85 ℃
Casing color In white
Out 1-6 Blue orange green

Relation products:

1x6 PLC Fiber Optic Splitter Mini Blockless Tube Type SC UPC Connector

OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
